Warm White 90w Smart LED Street Lights Environmental Friendly For High Pole Parking Lot Lighting

Shenzhen Lepower Optoelectronic Co., Ltd
Contact Now

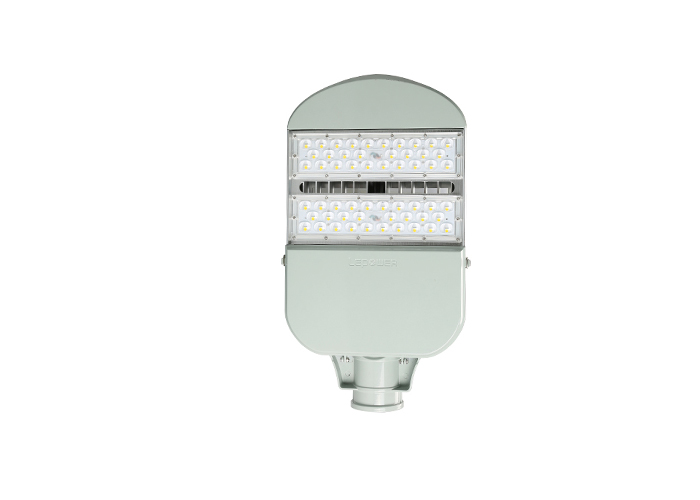

Warm White 90w Smart LED Street Lights Environmental Friendly For High Pole Parking Lot Lighting

  • 1
  • 2

Brand Name : LEPOWER(Shenzhen)

Model Number : LY-L1202

Certification : CE RHOS UL TUV CB SAA

Place of Origin : Shenzhen

MOQ : 50pcs

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 5000pcs per month

Delivery Time : 5-7 days

Type : Intelligent led street light

Power : 90W

CCT : 3000K / 4000K / 5000K / 6000K

CRI : Ra>70

Efficacy : 155lm/w

Warranty : 5 years

Packaging Details : Neutral carton packing

Contact Now

90w Smart Led Street Light Photocell / Timer With IP66 5 Years Warranty




Feature of smart street light

  •  High lumen output. The original lumen of LED is 200lm/w,the lumen output of complete lamp is 150-160lm/w,It can save more energy (60%-70%) than normal led lamps and traditional lamps.
  •  Smart control.It can be matched with smart control system,photocell to achieve dimming,timer,light control,remote turn on / off, remote monitoring,GPS Positioning.

  •  Good heat dissipation.Adoption of fin structure which is thick top and thin buttom,use of air convection“Pull Down”effect, quickly dissipate thermal.thin junction between the heat sink and fins,quickly conduct heat,temperature rise less than 10 ℃

  •  NEMA base.The base meets the NEMA standard. It is 7 pin base,better than normal 5 pin base or 3 pin base.

  •  Tool-free maintenance.It is designed with buckle. That makes the street light can be opened easily. No screw, No screwdriver required, You can open the driver box by your hand.

Data information

Electrical Specifications


ModelPowerInput VoltageCCTCRILuminous
Efficiency
Flux
LY-L120290WAC 100-277V
50/60Hz
3000K
4000K
5000K
6000K
≥70155lm/w13950lm


Mechanical Specifications


Beam AngleIP RatingIK ratingPFWarrantyOperating
Temperature
Storage
Temperature
150*70IP66IK10>0.955 years-40~50 ℃-40~85 ℃



IES for Dialux

Warm White 90w Smart LED Street Lights Environmental Friendly For High Pole Parking Lot Lighting


Smart control

Warm White 90w Smart LED Street Lights Environmental Friendly For High Pole Parking Lot Lighting
It can achieve remote turn on / off, remote monitoring, 0-10v dimming,photocell,timer. one gateway can control about 3km led street light.

Packing information

  1.  Size: 501*273*98mm
  2.  N.W.: 4.5kg
  3.  Carton (2pcs): 550*325*260mm
  4.  G.W. (2pcs): 10kg

Shipping information

  •  Deliever time:3-7 days for samples,5-15 days for batch goods.

  •  Shipping port :Shenzhen , China (mainland)

  •  FedEx/DHL/UPS for samples , Door-to-Door

  •  By Air or by Sea for batch goods , for FCL ,Airport receiving

  •  Customers specifying freight forwarders or negotiable shipping methods

Application
It is widely used in high pole parking lot lighting, car dealership lighting, roadways, pathways and perimeter.
Warm White 90w Smart LED Street Lights Environmental Friendly For High Pole Parking Lot Lighting
Warm White 90w Smart LED Street Lights Environmental Friendly For High Pole Parking Lot Lighting

Warm White 90w Smart LED Street Lights Environmental Friendly For High Pole Parking Lot Lighting
