High Brightness 200 Watt Exterior Parking Lot Lighting , Outdoor Public Commercial Street Lights

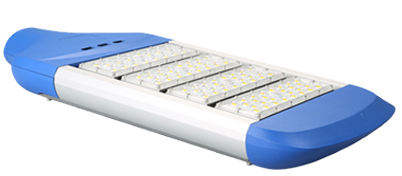

200 Watt LED Street Light 30000lm Outdoor Public Lighting Fixture With Meanwell Driver

Product attribute sheet

	Model	LY-L1304
	Power	200W
	Input Voltage	AC 200-240V 50/60Hz
	CCT	3000K / 4000K / 5000K
	CRI	Ra>70
	Luminous Efficiency (system effieiency)	150-160lm/w
	Flux of Lamp	30000-32000lm

Product Technology list

• Body material:  Aluminum
• Chip brand: Bridgelux / San'an
• Led quantity: 112pcs
• Driver: Meanwell ELG
• Power efficacy: 92%
• PF>0.95
• THD<20%
• Beam angle: 150*70 degree

• Lifetime: >50,000 Hours

• Pole diameter: φ60mm

• IP rating: IP66

• Warranty: 5 years

Product Feature

1. High lumen output. The original lumen of LED is 200lm/w,the lumen output of complete lamp is 150-160lm/w,It can save more energy (60%-70%) than normal led lamps and traditional lamps.
2. Honeycomb briquette effect heat dissipation principle, best thermal management system;
3. Adoption Lepower exclusive light source and ZAG Lens.Compared with similar products,the luminous efficiency can be rised 8% and light transmittance up to 98%.
4. Standard color temperatures: 3000K, 4000K, 5000K, 5700K;
5. Aluminum housing;Minimum 70 CRI;
6. Green product,no UV or IR radiation, no mercury pollution.
7. 5 years limited warranty.

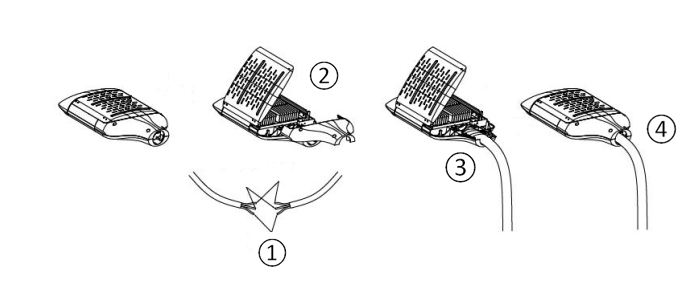

How to install it?

1. Connect the wires to the AC wire,Make sure that Yellow-green ground wire grounding reliably.

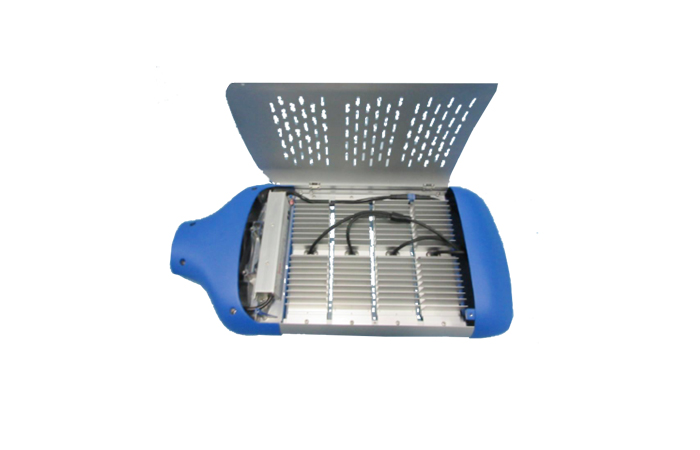

2. Remove the screws of back cover,open the back and remove the back cover.

3. Through the poles into the adapter,tighten the screws firmly on the lamp poles.

4. Put the back cover back and tighten the screws.

Packing information

Why choose us--Lepower?

Shenzhen Lepower Opto Electronics Corp., Ltd, founded in 2008, is a professional led product manufacturer since 2008.

1. about 400 staffs, more than 16,000 square meters modern production plant and ten thousand-grade static dust-free workshop.
2. strong independent R & D and innovation capability
3. advanced equipment.
That means we can provide you high quality products and delivery on time.

Our products include: led module, led high bay light,led street light and so on.They have been sold all over the world,and are enjoying great reputation with its professional quality.

If you are looking for LED supplier with high reliability, good quality, reasonable price and full series products which can satisfy your various demands, Lepower, a total solution provider, is definitely your first choice!
